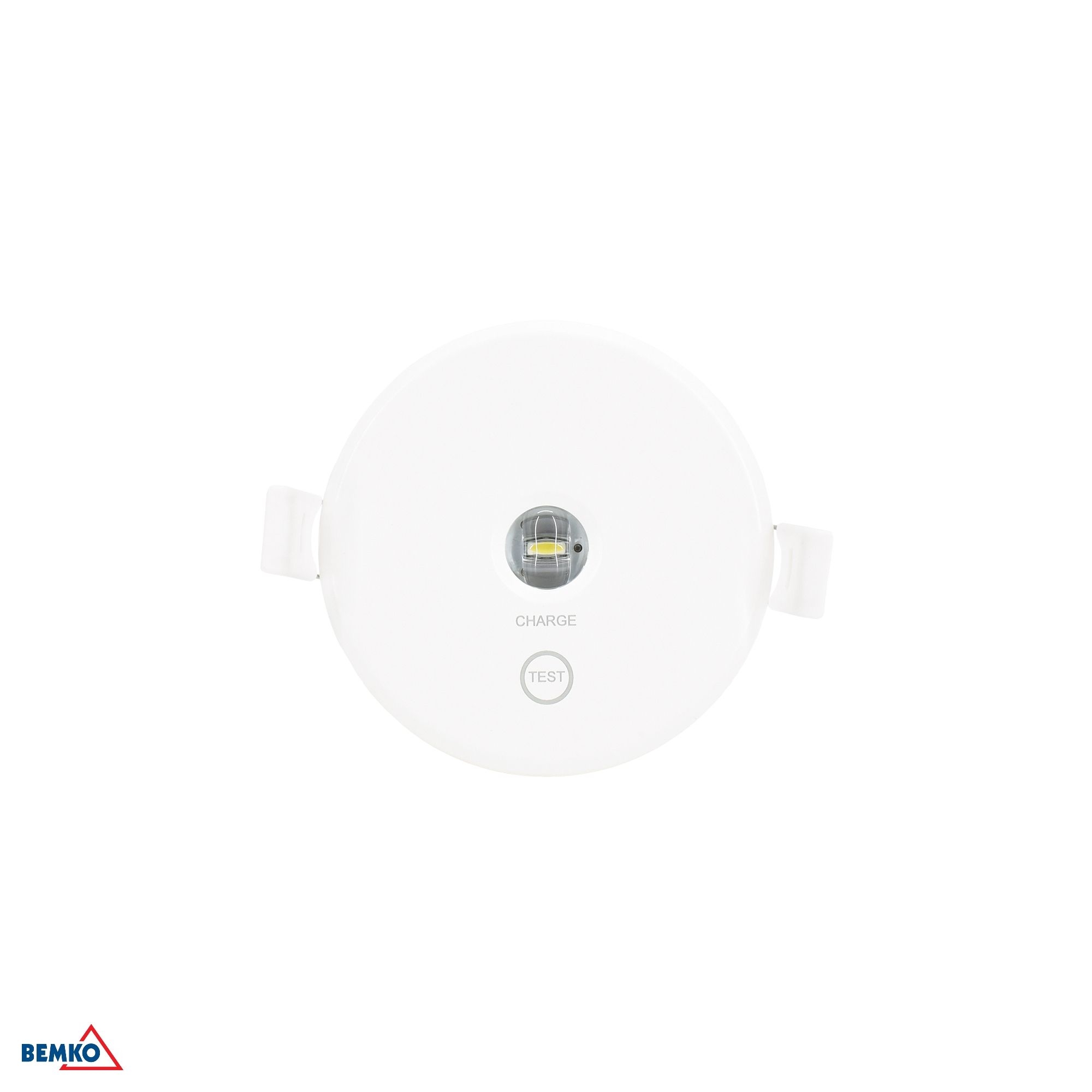

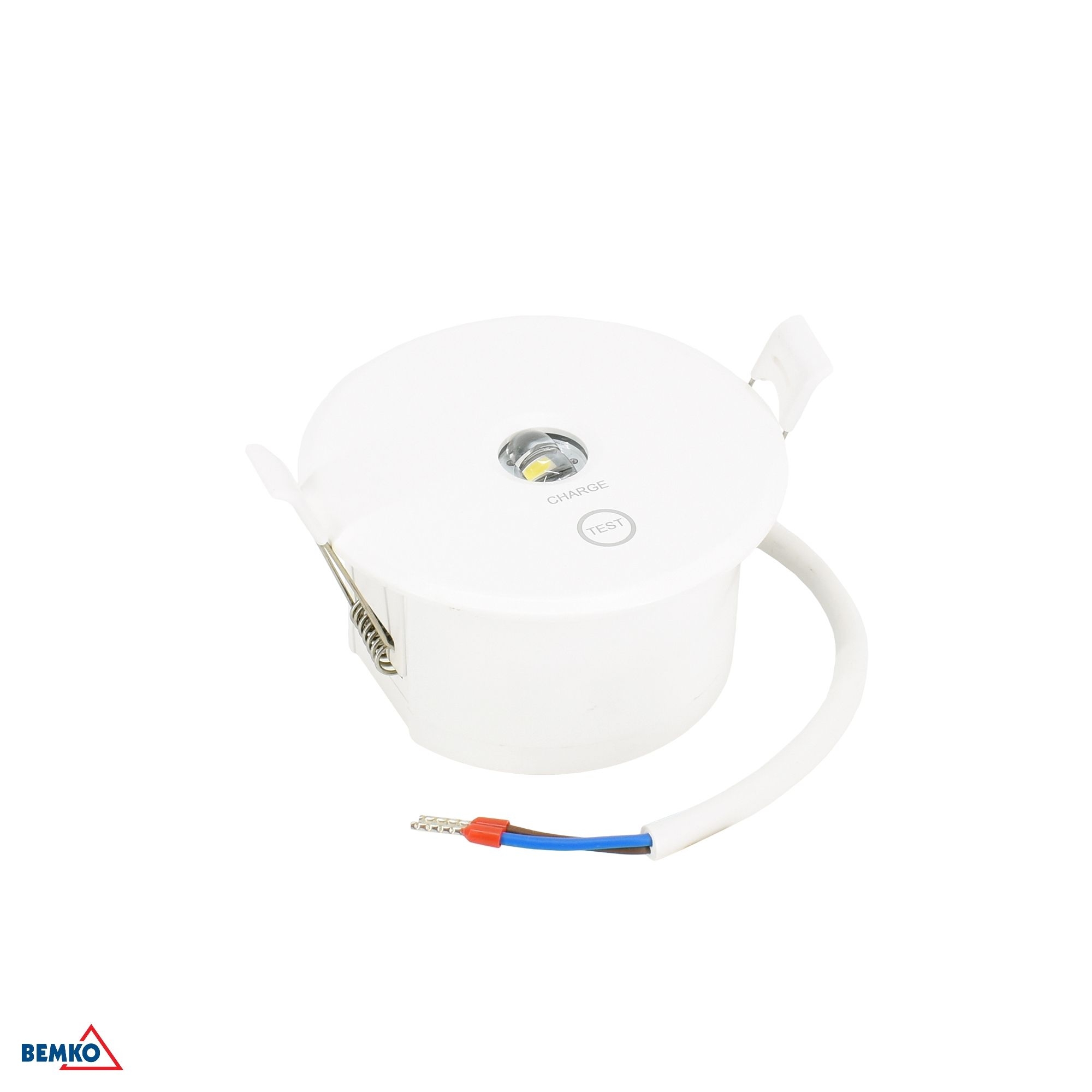

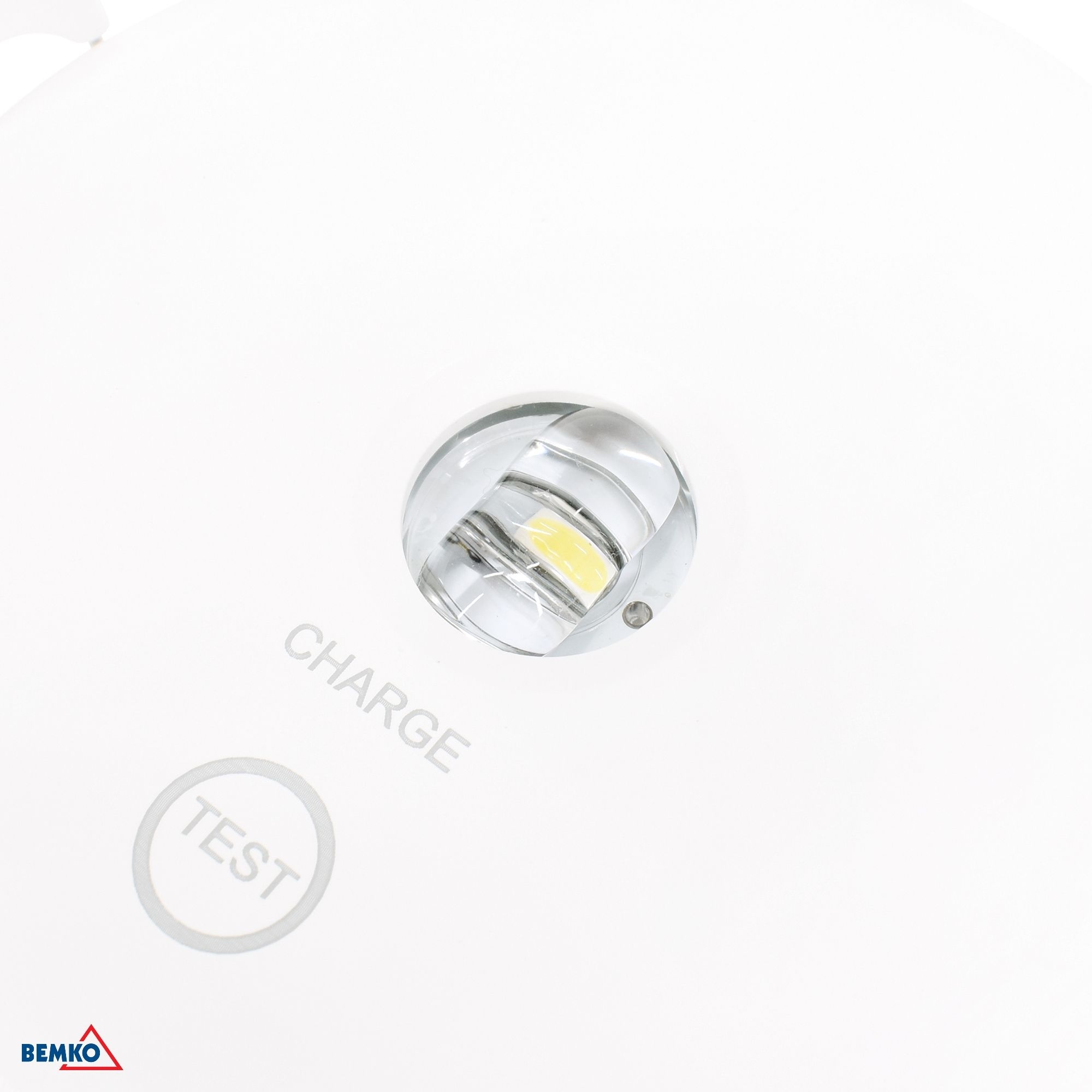

EMERGENCY LUMINAIRE TOLER 2 ROUND 1W CORRIDOR LENS IP54 AUTOTEST 3H
Code: C90-TLR2-1SC-AT3H-WH-CNBOP
EAN:5902138407742
Detailed information regarding price and stock availability is available after logging in.
Log in to add a product to your cartTechnical Specification
| Material | PC |
|---|---|
| Color | RAL9016 |
| Nominal voltage | Un: 230V~ 50Hz |
|---|---|
| Power consumption | 1W |
| Color rendering index | CRI>70 |
|---|---|
| Color temperature | 6500K |
| Luminous flux | 120lm |
| Height | 47,8mm |
|---|---|
| Length | 90mm |
| Width | 90mm |
| Protection class | Class II |
|---|---|
| Protection degree | IK06 |
| Warranty | 5 lat oprawa, 5 lat akumulator |
| Degree of protection | IP20 / IP54 |
| Carton | 40 |
|---|
| Battery | Li-FePO4 1600mAh 3,2V |
|---|---|
| Dimmer | Nie współpracuje |
| Emergency operating time | 3h |
| Installation | Podtynkowy |
| Operating temperature | 0°C / +40°C |
| Operation mode | NM: Awaryjny |
| Power factor | PF>0,5 |
| Cable length | 220mm |
| Brand | Luxmena |
Available executions
| Luminous flux | Color temperature | Degree of protection | Color | Protection class | Protection degree | |
|---|---|---|---|---|---|---|
| C90-TLR2-ZMN-WH | RAL 9016 | |||||
| C90-TLR2-130-WH | RAL9016 | |||||
| C90-TLR2-1SC-AT3H-WH-CNBOP | 120lm | 6500K | IP20 / IP54 | RAL9016 | Class II | IK06 |
| C90-TLR2-1SO-AT3H-WH-CNBOP | 160lm | 6500K | IP20 / IP54 | RAL9016 | Class II | IK06 |
| C90-TLR2-3ZS-AT2H-WH-CNBOP | 500lm | 6500K | IP65 | RAL9016 | Class II | IK08 |
| C90-TLR2-3ZS-AT3H-WH-CNBOP | 350lm | 6500K | IP65 | RAL9016 | Class II | IK08 |
Dimensions
| Height | Length | Width | |
|---|---|---|---|
| C90-TLR2-ZMN-WH | 68mm | 120mm | 120mm |
| C90-TLR2-130-WH | 4,5mm | 130mm | 130mm |
| C90-TLR2-1SC-AT3H-WH-CNBOP | 47,8mm | 90mm | 90mm |
| C90-TLR2-1SO-AT3H-WH-CNBOP | 47,8mm | 90mm | 90mm |
| C90-TLR2-3ZS-AT2H-WH-CNBOP | 63mm | 120mm | 120mm |
| C90-TLR2-3ZS-AT3H-WH-CNBOP | 63mm | 120mm | 120mm |
