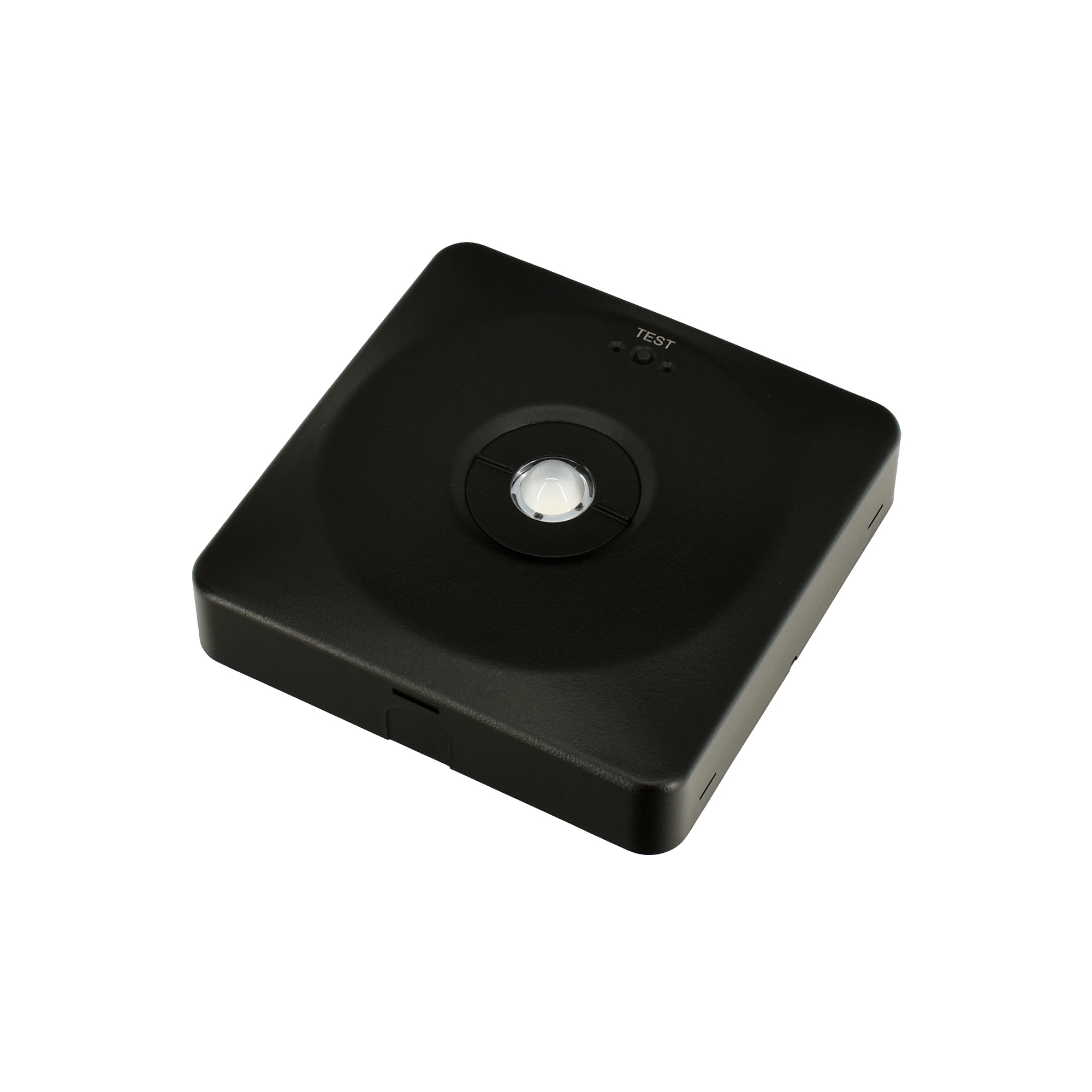

  5. EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK

EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK

EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 SQUARE 3W LENS SET IP20 AUTOTEST 3H BLACK

Technical Specification

Mechanical data
Material PC
Color RAL9005
Electrical data
Nominal voltage Un: 230V~ 50Hz
Power consumption 3W
Light data
Color rendering index CRI> 70
Color temperature 6500K
Luminous flux 160lm
Installation Data
Height 32mm
Length 129,8mm
Width 129,8mm
Certificates and markings
Protection class Class II
Protection degree IK06
Degree of protection IP20
Packaging
Carton 40
Other
Battery Li-FePO4 1600mAh 3,2V
Dimmer Nie współpracuje
Emergency operating time 3h
Operating temperature 0°C / +40°C
Operation mode Awaryjny
Power factor PF>0,4
Brand Luxmena

Available executions

  Luminous flux Color temperature Degree of protection Color Protection class Protection degree
C91-SKL-S-3SC-AT3H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SO-AT3H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SX-AT3H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SC-AT3H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SO-AT3H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SX-AT3H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SC-AT2H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SX-AT2H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SO-AT2H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SC-AT2H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SX-AT2H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SO-AT2H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SC-AT1H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SX-AT1H-CNBOP 161lm 6000K IP40   I
C91-SKL-S-3SO-AT1H-CNBOP 161lm 6000K IP40   Soczewki: SO
C91-SKL-R-3SC-AT1H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SX-AT1H-CNBOP 161lm 6000K IP40   I
C91-SKL-R-3SO-AT1H-CNBOP 161lm 6000K IP40   I
C90-SKL2-R-3ZS-AT3H-WH 160lm 6500K IP20   Class II
C90-SKL2-R-3ZS-AT3H-BL 160lm 6500K IP20   Class II
C90-SKL2-S-3ZS-AT3H-WH 160lm 6500K IP20 RAL9016 Class II IK06
C90-SKL2-S-3ZS-AT3H-BL 160lm 6500K IP20 RAL9005 Class II IK06
C90-SKL2-S-ZMP-WH       RAL9016
C90-SKL2-S-ZMP-BL       RAL9005

Dimensions

  Height Length Width
C91-SKL-S-3SC-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SO-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SX-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SC-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SO-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SX-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SC-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SX-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SO-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SC-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SX-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SO-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SC-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SX-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SO-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SC-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SX-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SO-AT1H-CNBOP 44mm 150mm 150mm
C90-SKL2-R-3ZS-AT3H-WH 39,5mm 130,5mm 130,5mm
C90-SKL2-R-3ZS-AT3H-BL 39,5mm 130,5mm 130,5mm
C90-SKL2-S-3ZS-AT3H-WH 32mm 129,8mm 129,8mm
C90-SKL2-S-3ZS-AT3H-BL 32mm 129,8mm 129,8mm
C90-SKL2-S-ZMP-WH 19,6mm 160mm 160mm
C90-SKL2-S-ZMP-BL 19,6mm 160mm 160mm
