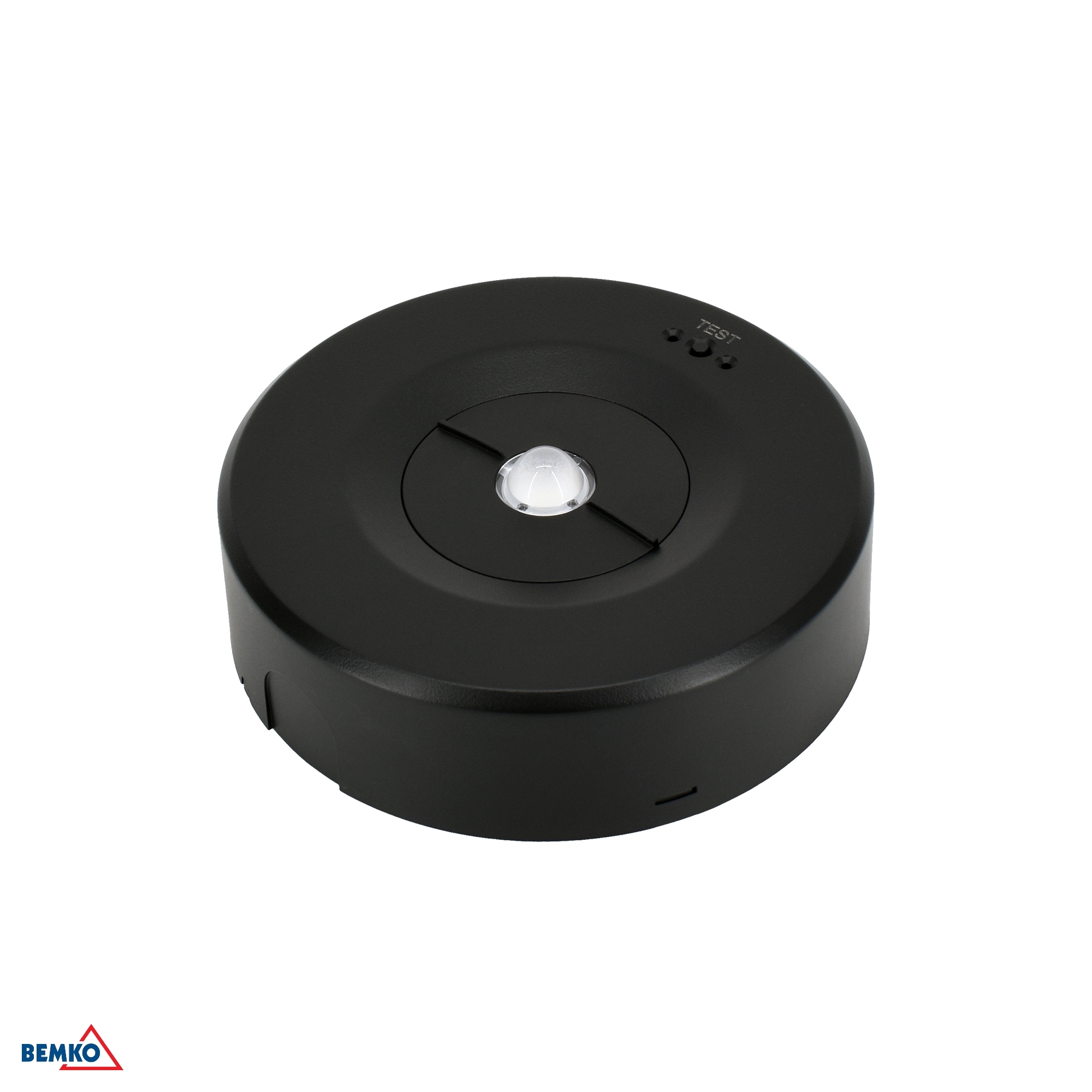

  5. EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK

EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK

EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK
EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H BLACK

Technical Specification

Electrical data
Nominal voltage Un: 230V~ 50Hz
Power consumption 3W
Light data
Color rendering index CRI> 70
Color temperature 6500K
Luminous flux 160lm
Installation Data
Height 39,5mm
Length 130,5mm
Width 130,5mm
Certificates and markings
Protection class Class II
Degree of protection IP20
Packaging
Carton 40
Other
Battery Li-FePO4 1600mAh 3,2V
Dimmer Nie współpracuje
Emergency operating time 3h
Operating temperature 0°C/ +40°C
Operation mode Awaryjny
Power factor PF>0,4
Brand Luxmena

Available executions

  Luminous flux Color temperature Degree of protection Protection class
C91-SKL-S-3SC-AT3H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SO-AT3H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SX-AT3H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SC-AT3H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SO-AT3H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SX-AT3H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SC-AT2H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SX-AT2H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SO-AT2H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SC-AT2H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SX-AT2H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SO-AT2H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SC-AT1H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SX-AT1H-CNBOP 161lm 6000K IP40 I
C91-SKL-S-3SO-AT1H-CNBOP 161lm 6000K IP40 Soczewki: SO
C91-SKL-R-3SC-AT1H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SX-AT1H-CNBOP 161lm 6000K IP40 I
C91-SKL-R-3SO-AT1H-CNBOP 161lm 6000K IP40 I
C90-SKL2-R-3ZS-AT3H-WH 160lm 6500K IP20 Class II
C90-SKL2-R-3ZS-AT3H-BL 160lm 6500K IP20 Class II
C90-SKL2-S-3ZS-AT3H-WH 160lm 6500K IP20 Class II
C90-SKL2-S-3ZS-AT3H-BL 160lm 6500K IP20 Class II
C90-SKL2-S-ZMP-WH
C90-SKL2-S-ZMP-BL

Dimensions

  Height Length Width
C91-SKL-S-3SC-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SO-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SX-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SC-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SO-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SX-AT3H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SC-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SX-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SO-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SC-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SX-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SO-AT2H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SC-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SX-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-S-3SO-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SC-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SX-AT1H-CNBOP 44mm 150mm 150mm
C91-SKL-R-3SO-AT1H-CNBOP 44mm 150mm 150mm
C90-SKL2-R-3ZS-AT3H-WH 39,5mm 130,5mm 130,5mm
C90-SKL2-R-3ZS-AT3H-BL 39,5mm 130,5mm 130,5mm
C90-SKL2-S-3ZS-AT3H-WH 32mm 129,8mm 129,8mm
C90-SKL2-S-3ZS-AT3H-BL 32mm 129,8mm 129,8mm
C90-SKL2-S-ZMP-WH 19,6mm 160mm 160mm
C90-SKL2-S-ZMP-BL 19,6mm 160mm 160mm
